In this article, we delve into the common troubleshooting scenarios encountered when working with the 74HC125D , a popular quad buffer with 3-state outputs. By examining the typical issues, potential causes, and their respective solutions, we aim to provide engineers and hobbyists with practical insights into improving the reliability and performance of their projects.

Introduction to the 74HC125D and Common Troubleshooting Scenarios

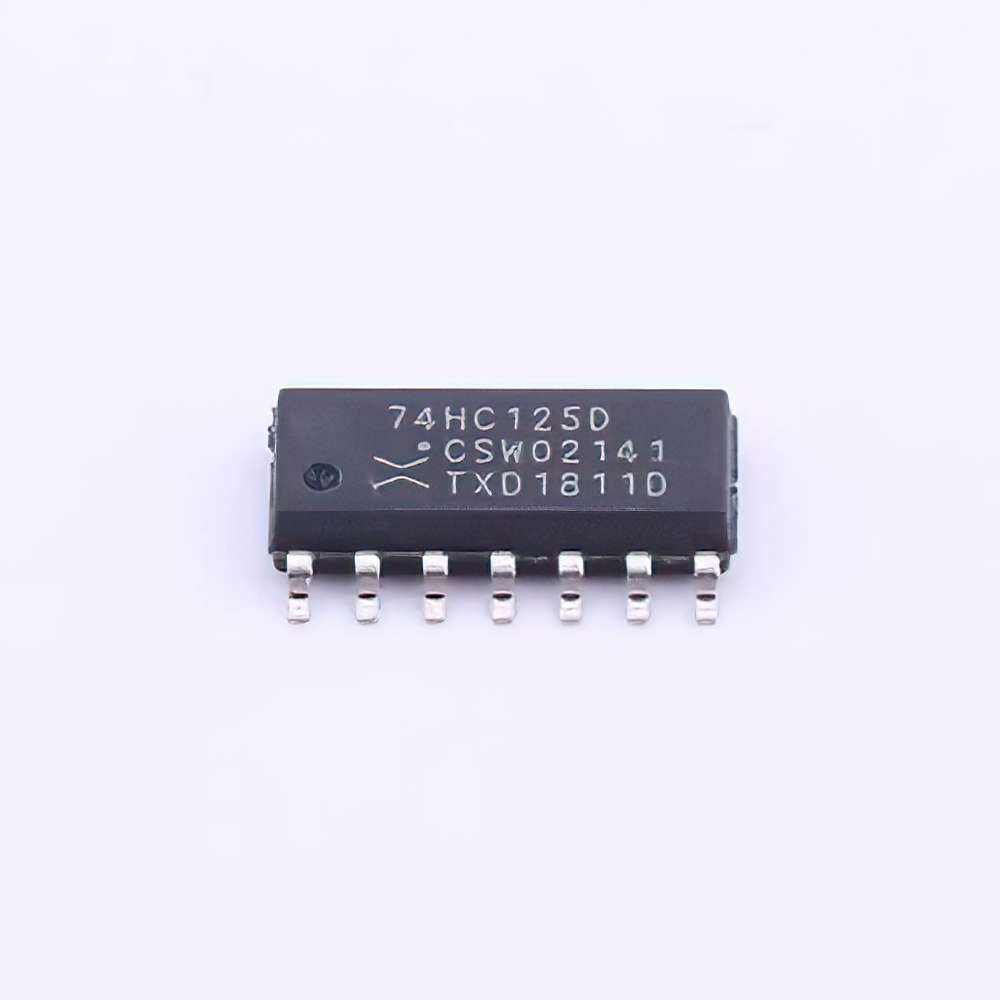

The Nexperia 74HC125D is a widely used logic device, specifically a quad buffer with 3-state outputs, designed for high-speed CMOS (Complementary Metal-Oxide-Semiconductor) technology. It is part of the 74HC series, which stands for “High-Speed CMOS.” This IC is used to drive high-speed logic signals between circuits with the ability to put the output into a high-impedance (high-Z) state, making it ideal for bus systems where multiple devices share the same data lines. Its versatility makes it a crucial component in various applications, from microcontrollers and communication systems to industrial control circuits.

Despite its reliability and popularity, users of the 74HC125D sometimes face challenges related to its functionality. Understanding common issues and knowing how to troubleshoot them effectively can save both time and resources. This article will cover several typical problems encountered when using this IC and provide practical solutions to resolve these issues.

1. Power Supply Issues

One of the most common causes of malfunctioning in the 74HC125D is power supply problems. The device operates within a specific voltage range, typically from 2V to 6V. If the supply voltage falls outside this range, the IC might not function properly, or it may fail to power up at all.

Possible Symptoms:

Outputs stay stuck in a high or low state.

Device does not respond to input signals.

Unstable or erratic behavior during operation.

Solution:

First, ensure that the 74HC125D is receiving the correct supply voltage. If you’re using a regulated power supply, verify its output using a multimeter. Additionally, check that the ground connection (GND) is securely connected to the common reference voltage of the circuit. If necessary, replace or upgrade the power supply to one that can maintain stable voltage within the 74HC125D’s operating range.

2. Inadequate Input Driving Strength

The 74HC125D is a logic buffer, meaning that it drives the output based on the input signals. If the input signal is too weak or unstable, the output will not behave as expected. This can be especially problematic when interfacing with open-drain or open-collector circuits, where the input signal may not be pulled up to the correct voltage.

Possible Symptoms:

Outputs remain in high impedance or non-assertive states.

Unpredictable or slow transitions between high and low states.

Signal degradation or noise issues.

Solution:

Ensure that the input signals are within the valid logic range. For a logic high input, the signal should be close to the supply voltage, and for a logic low input, it should be close to ground. If the input signal is coming from an open-drain device, a pull-up resistor should be added to the input to ensure it is correctly driven to the high state when necessary. In cases where signal strength is an issue, using a buffer or an appropriate driver for the input might help improve reliability.

3. Bus Contention and Output Conflicts

The 74HC125D is equipped with 3-state outputs, which means it can place its output into a high-impedance state. This feature is crucial when multiple devices are connected to the same bus or signal line. However, bus contention—when multiple devices drive the bus at the same time—can lead to erratic behavior or even damage the IC.

Possible Symptoms:

Unexpected output states, including both logic high and logic low states simultaneously.

Physical damage to the IC from excessive current draw.

Unstable operation in multi-device bus systems.

Solution:

To prevent bus contention, always ensure that only one device drives the bus at any given time. This can be achieved by using a proper control mechanism for enabling or disabling the outputs of the 74HC125D. For example, ensure that the 3-state control (OE pin) is properly managed by the system, ensuring that only one device is active on the bus at once. Additionally, check for correct pull-up or pull-down resistors to define the idle state of the bus when no device is driving the signal.

4. Incorrect Logic Levels

The 74HC125D operates with CMOS logic levels, which means that the input voltage thresholds for high (VIH) and low (VIL) signals are dependent on the supply voltage. If the input signal levels do not meet these thresholds, the IC may not interpret the logic levels correctly, leading to malfunctioning outputs.

Possible Symptoms:

Incorrect output values that do not reflect the expected input states.

Logic errors in the circuit.

The IC appears to be unresponsive to input signals.

Solution:

To resolve incorrect logic levels, verify that the input signals meet the necessary voltage thresholds. For a given supply voltage, refer to the datasheet for the exact VIH and VIL values. For instance, if you are operating at 5V, the VIH should be at least 3.5V, and the VIL should be no more than 1.5V. If the input signal is marginal, consider using a level shifter or a more robust driver to ensure the logic levels are correctly recognized.

Advanced Troubleshooting, Preventive Measures, and Conclusion

5. Short Circuits and Overcurrent Protection

While the 74HC125D is generally robust, it is still vulnerable to short circuits, especially on the output lines. If the output is directly connected to another low-voltage signal or if there is a direct short to ground or the supply voltage, the IC could draw excessive current, which may damage the chip.

Possible Symptoms:

Unresponsive IC.

Hot or damaged IC.

Output pins stuck in an undefined state.

Solution:

Ensure that all output pins are properly connected and that no accidental shorts occur. This can be done by using current-limiting resistors or monitoring the circuit for any potential short circuits. Also, check the IC’s output lines to make sure they are not directly tied to a power source or ground unless intentionally designed to do so. In the case of excessive current, consider adding a fuse or other overcurrent protection devices in the circuit.

6. Capacitive Load and Signal Integrity

The 74HC125D is designed to drive small capacitive loads, but when it is used to drive longer traces or more capacitive load (e.g., larger circuit boards or multiple downstream components), signal integrity issues can arise. This can lead to slow transitions or even oscillations, particularly at higher operating frequencies.

Possible Symptoms:

Slow rise/fall times on the output.

Glitches or oscillations at high frequencies.

Unexpected signal behavior in high-speed circuits.

Solution:

To mitigate issues with capacitive loading, reduce the trace length between the output and the load as much as possible. If long traces are unavoidable, add a series resistor close to the output pin to help manage the capacitance. Additionally, ensure that the operating frequency is within the recommended limits for the 74HC125D. For higher frequencies, consider using a stronger driver or an alternate IC designed for high-speed applications.

7. Environmental Factors and Temperature

The 74HC125D, like all ICs, is affected by temperature fluctuations. Operating outside the recommended temperature range (typically -40°C to 125°C) can cause erratic behavior or permanent damage to the IC. If the IC is exposed to extreme heat or cold, it may fail to operate correctly.

Possible Symptoms:

Unstable outputs under different environmental conditions.

Complete failure of the IC after prolonged exposure to high temperatures.

Reduced performance in outdoor or industrial applications.

Solution:

To avoid temperature-related issues, ensure the IC is used within its rated temperature range. For high-temperature applications, consider using a temperature-compensated version of the IC or implement heat sinks or other cooling methods to manage heat buildup. In cases where extreme environmental conditions are anticipated, using a more robust, industrial-grade IC could provide better long-term reliability.

Conclusion

The 74HC125D is a powerful and versatile component that is widely used in digital logic circuits. However, like any other integrated circuit, it can encounter problems if not properly handled. By understanding common troubleshooting scenarios, such as power supply issues, input driving strength, bus contention, incorrect logic levels, and more, engineers and hobbyists can significantly reduce the occurrence of problems and improve the performance and reliability of their circuits.

Proper design considerations, including correct voltage levels, managing output states, and preventing short circuits, can go a long way in preventing issues. Additionally, adopting good practices such as using level shifters, implementing current protection mechanisms, and accounting for temperature effects will ensure that your 74HC125D-based designs operate smoothly and efficiently.

By following the tips and solutions outlined in this article, you’ll be well-equipped to address common troubleshooting scenarios, ultimately leading to more reliable and efficient designs. Whether you’re working on a simple microcontroller project or a complex communication system, understanding and mitigating potential issues with the 74HC125D will enhance your project’s success.
